Description

All you need to do is weld it in and fill it up!

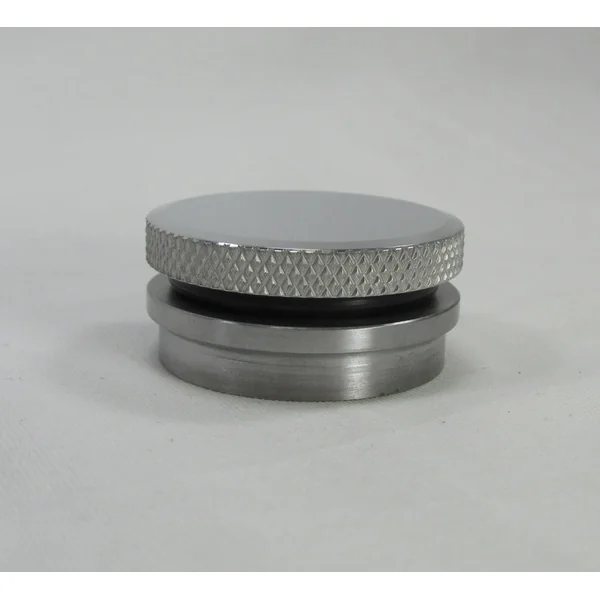

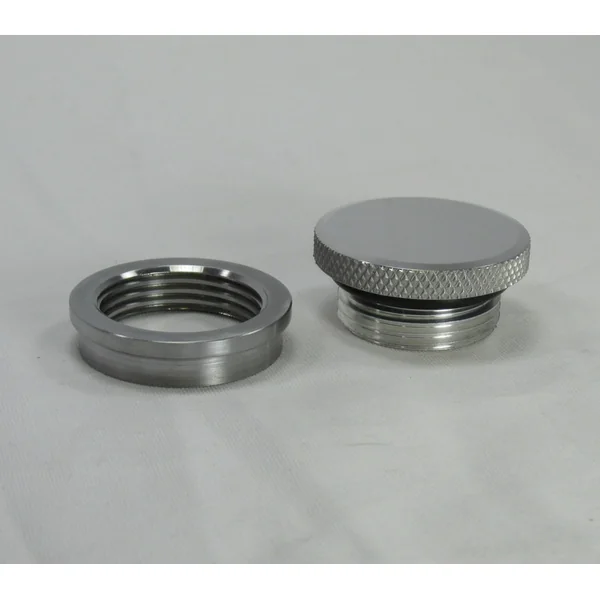

Our own Vented or Non-Vented Gas Cap w/ Steel Stepped Flanged “Tophat” Bung easily welds to any steel tank.

Features:

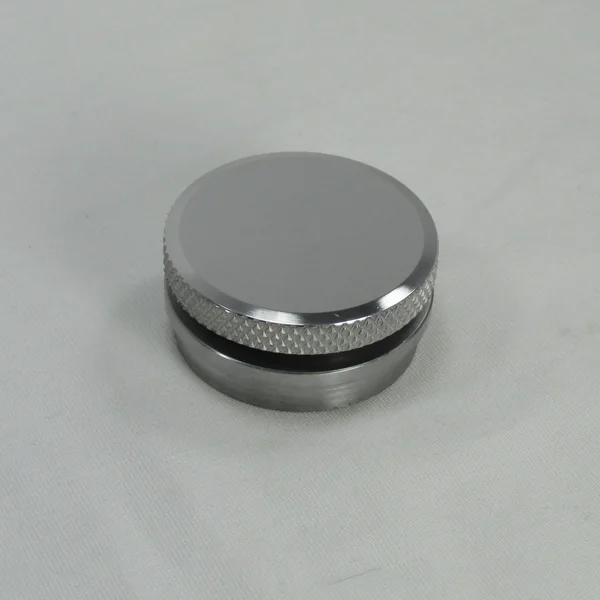

• Knurled Cap – Machined from 6061 Billet Aluminum and polished to a mirror finish.
• Vented or Non-Vented – The cap comes with two o-rings. One vented and one non-vented to work with many different applications.
• Steel Bung – Machined from D.O.M steel and stepped to make welding a breeze. Just drill a 1-1/2″ hole and drop it in.
• (2) 1/8″ Buna-N O-Rings – Temperature range -35 to +250 F. Durometer hardness is A70.
• MADE in the USA!

Dimensions:

Cap ONLY:

• OD= 1-5/8″
• Height (Including Threads)= 3/4″
• Knurled Edge= 1/4″
• Thread Pitch= 1-1/4″-12

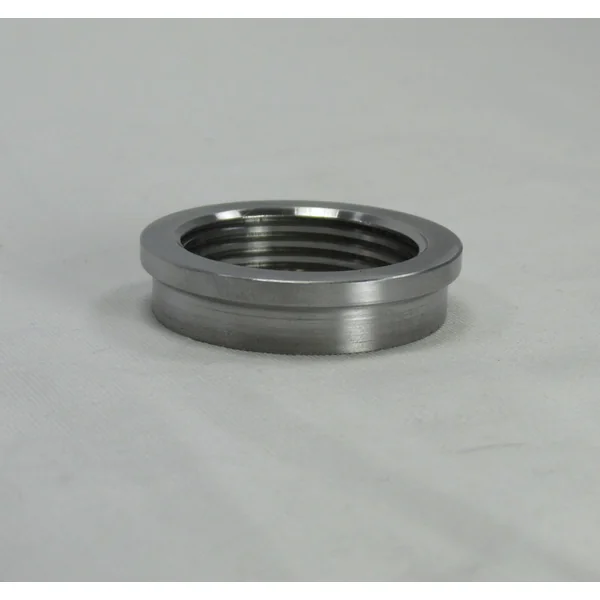

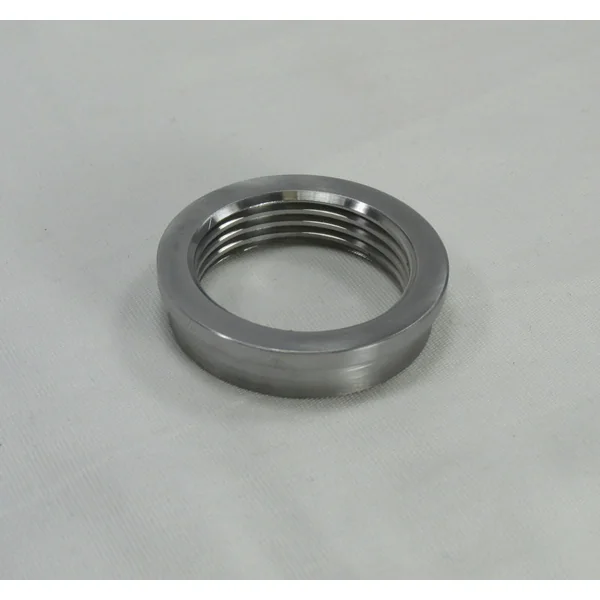

Bung ONLY:

• OD= 1-5/8″
• Height= 3/8”
• Thread Pitch= 1-1/4″-12

Finish:

• Polished Aluminum

Included:

• Billet Aluminum Cap
• (2) Buna-N Seals
• Steel Bung
• Fitment: Will fit in any tank that is able to accommodate the above dimensions.

*We also offer these with various designs milled into them. See our ‘gas cap’ section for more information.*
