BTR Equalizer 3 Intake Manifold, Aluminum2010-2015 Camaro SS

Description

Description

Details:

• Finish: BARE
• Manifold Material: CAST ALUMINUM
• Fuel Rails Included: NO
• Manifold Port Style: LS3/L99 – SQUARE PORT
• Engine Type: Gen III/Gen IV LS
• Manifold Fueling Style: EFI

Features:

• Natural Aluminum Finish
• Cast 319 Aluminum Construction
• O-Ringed Port Openings and Lid Surface
• Easy Insert Steep Chamfer Injector Bores for Easy Injector O-Ring Insertion
• Operating Range: 6000-8000 RPM
• Underslung Plenum Design for Maximum Hood Clearance
• 102mm Profiled Throttle Bore and LS3 Map Sensor Bore
• 1 Map Sensor Location in Rear with 1 Additional User Optional Location
• 2 Piece Design for Easy Porting Access
• Lightweight CAD Generated Design

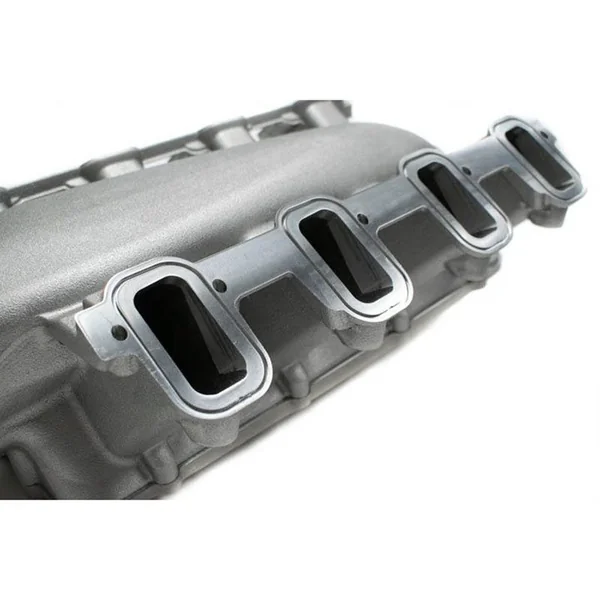

BTR’s Equalizer 3 Intake Manifold is designed for combinations that are looking to make peak power between 6000 and 8000 rpm. Boosted engine combinations are more reliable at making peak power in this higher RPM range compared to making peak power around 6500 rpm, like most stock style intakes, provided the valve train is engineered properly. This cast aluminum intake manifold has an underslung plenum design for maximum hood clearance and profiled port openings for optimum out-of-the-box performance. All threads are roll form aircraft standard DSDV. Lightweight CAD generated design with ISO9001 certified machining.

Emissions Disclaimer: This product is NOT CARB legal and CAN NOT ship to California.

Note: The BTR fuel rail kit is designed to be a direct fit for your BTR Equalizer & Trinity intake manifolds. This kit includes all of the brackets and hardware to accommodate most fuel injector heights. Also included are BTR fuel fittings to help you plumb your fuel rails.

Suggested Component Upgrade (see options above): BTR Equalizer Billet Fuel Rail Kit – FRK-01

Part Number: IMA-03
