Diode Dynamics SS3 Type SV2 Max Fog Light Kit, White SAE/DOT Fog2019-2021 Silverado 1500

Description

Description

Features:

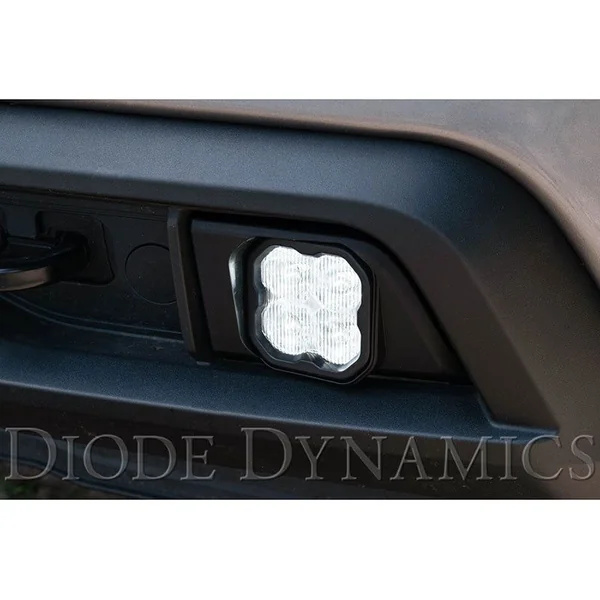

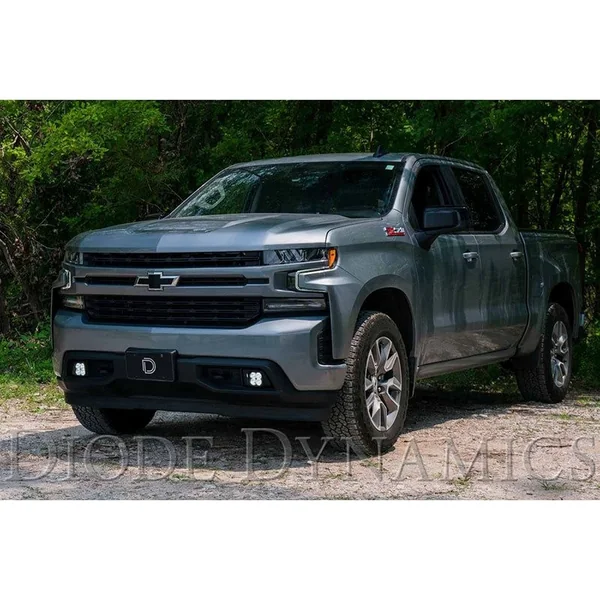

• Direct replacement for Chevrolet Silverado 1500 fog lamps
• SAE-compliant road-legal output
• Includes one-piece molded bezel, for factory-style appearance
• Plug and play, no modification needed
• Advanced TIR optics provide high efficiency and focus
• Durable powdercoated aluminum die-cast
• High-intensity LEDs
• 6000K color temperature
• Engineered and Assembled in USA
• 8 year warranty
• Sold as a Pair (Left and Right Side)

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They’ve also been put to the test on-road by racers and enthusiasts alike.

Specs:

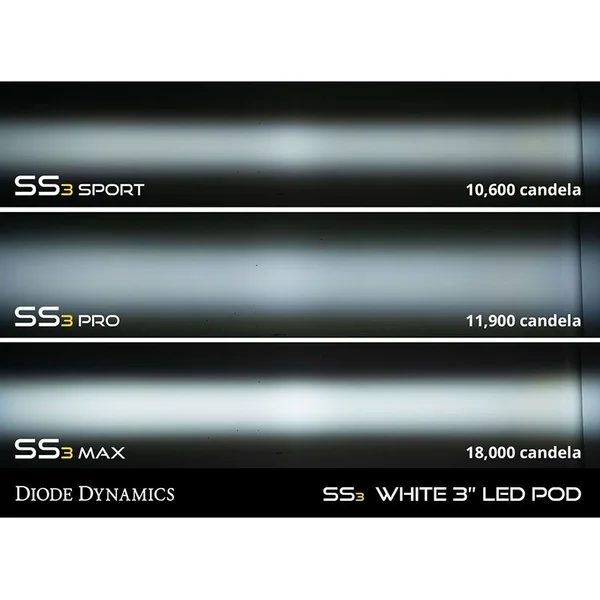

• Peak Beam Intensity (Candela) – 54,700 cd
• Illuminance (LUX @ 10M) – 547 LUX
• Measured Output (Lumens) – 1,520 lm
• Raw Output (Lumens) – 2,262 lm
• Output Color – 6000K White

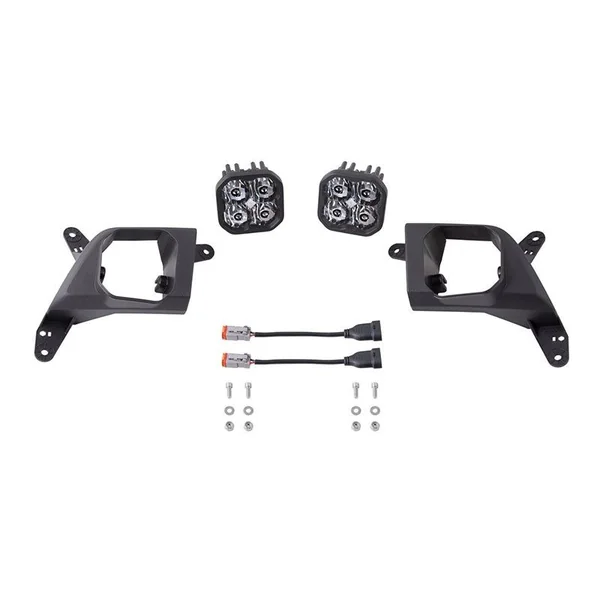

In the Box:

• Two (2) SS3 3” Standard LED Pods
• Two (2) H11 DT Adapters
• Two (2) Type SV2 brackets
• Mounting hardware
• Mounting guide

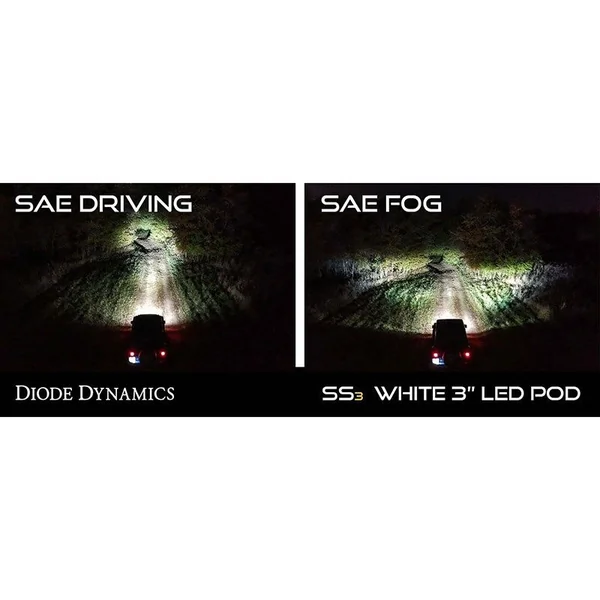

SAE Compliant: All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

• SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

Note: When installed as a pair and aimed in accordance with your state’s regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light. Please check your local laws and regulations for aiming, installation, and applicability.

Part Number: DD6835

Installation Instructions (opens in new tab): Click

Warranty Information (opens in new tab): Click

Warranty Information

8 year warranty

Vehicles
